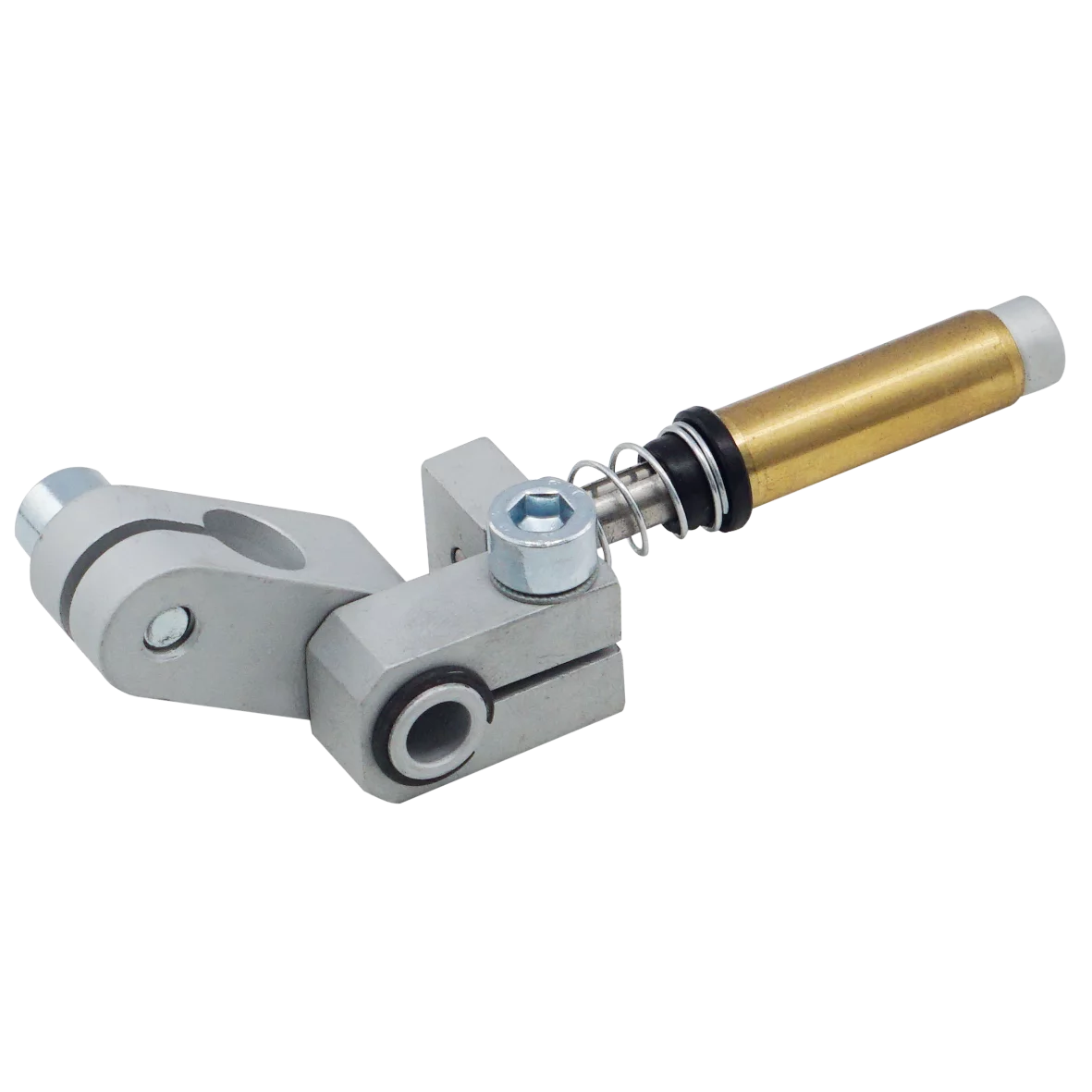

Spring loaded elbow arm, anti-twist protection shaft and clamp diam. 10 mm, stroke 10 mm
SKU:GR03.160
Login to see the price
- Components for mounting grippers and other gripping elements
- Spring compensates for variation in ejection stroke
- Angle adjustment +/- 130°
- Smooth motion due to lubrication-free polymer bearing
| Designation | Value |
|---|---|
| H | 34.3 mm |
| L | 30.0 mm |
| B | 14.0 mm |
| C | 105.0 mm |
| F | 10.0 mm |
| Ø A | 10.0 mm |
| D | 22.7 mm |
| E | 30.0 mm |
| G | 53.0 mm |
