<li>Gripper for large strokes for handling large parts</li>
<li>Double-acting for inside/outside gripping and short duty cycles</li>
<li>Body and jaws made of high-strength aluminum alloy</li>
<li>Sensors for monitoring gripper action via piston position optionally available</li>
</ul>
<ul>
<li>Medium: filtered and oiled/unoiled air</li>
<li>PNP and NPN sensors: C-slot (straight) for sensors: <a href="https://fipa.com/en-DE/variant/gr04-198" target="_blank" rel="noopener">GR04.198</a>, <a href="https://fipa.com/en-DE/variant/gr04-198-npn" target="_blank" rel="noopener">GR04.198/NPN </a> C-slot (90° angle) for sensors: <a href="https://fipa.com/en-DE/variant/gr04-202p" target="_blank" rel="noopener">GR04.202P</a>, <a href="https://fipa.com/en-DE/variant/gr04-202n" target="_blank" rel="noopener">GR04.202N</a> C-slot (straight, short design) for sensors: <a href="https://fipa.com/en-DE/variant/gr04-280">GR04.280P</a>, <a href="https://fipa.com/en-DE/variant/gr04-280n" target="_blank" rel="noopener">GR04.280N</a></li>
</ul>

<ul>
<li>Greifer für große Hübe für die Handhabung großer Teile</li>
<li>Doppeltwirkend für Innen- und Außengreifen sowie kurze Taktzeiten, je ein Druckluftanschluss für Öffnen und Schließen</li>
<li>Gehäuse und Backen aus hochfester Aluminiumlegierung</li>
<li>Adaptierung von kundenspezifischen Greifbacken</li>
<li>Optionale Erfassung der Kolbenstellung</li>
</ul>
<ul>
<li>Medium: gefilterte und geölte/ungeölte Luft</li>
<li>PNP- und NPN-Sensoren: C-Nut (gerade) für Sensoren: <a href="https://fipa.com/de-DE/variant/gr04-198" target="_blank" rel="noopener">GR04.198</a>, <a href="https://fipa.com/de-DE/variant/gr04-198-npn" target="_blank" rel="noopener">GR04.198/NPN</a>  C-Nut (Winkel 90°) für Sensoren: <a href="https://fipa.com/de-DE/variant/gr04-202p" target="_blank" rel="noopener">GR04.202P</a>, <a href="https://fipa.com/de-DE/variant/gr04-202n">GR04.202N</a> C-Nut (gerade kurze Bauform) für Sensoren: <a href="https://fipa.com/de-DE/variant/gr04-280p" target="_blank" rel="noopener">GR04.280P</a>, <a href="https://fipa.com/de-DE/variant/gr04-280n" target="_blank" rel="noopener">GR04.280N</a></li>
</ul>

Parallel grippers for large strokes – piston diameter 10 - 20 mm

NO
Working pressure 2 - 6 bar
Air connection M5-female
Double acting


Designation	Value
H	M6
L	17.0 mm
B	54.0 mm
A	65.0 mm
C	260.0 mm
G	M5
D	70.0 mm
L1	4.5 mm
E1	10.0 mm
E2	11.0 mm
K	24.0 mm
A1	113.0 mm
D1	69.0 mm
S	96.0 mm
U	52.0 mm
V	80.0 mm
T	100.0 mm
F1	34.0 mm
C1	256.0 mm
C2	176.0 mm
F2	34.0 mm
F3	30.0 mm
Ø R	6.6 mm
E3	11.0 mm
H1	M6
H2	M6

Sales Partner

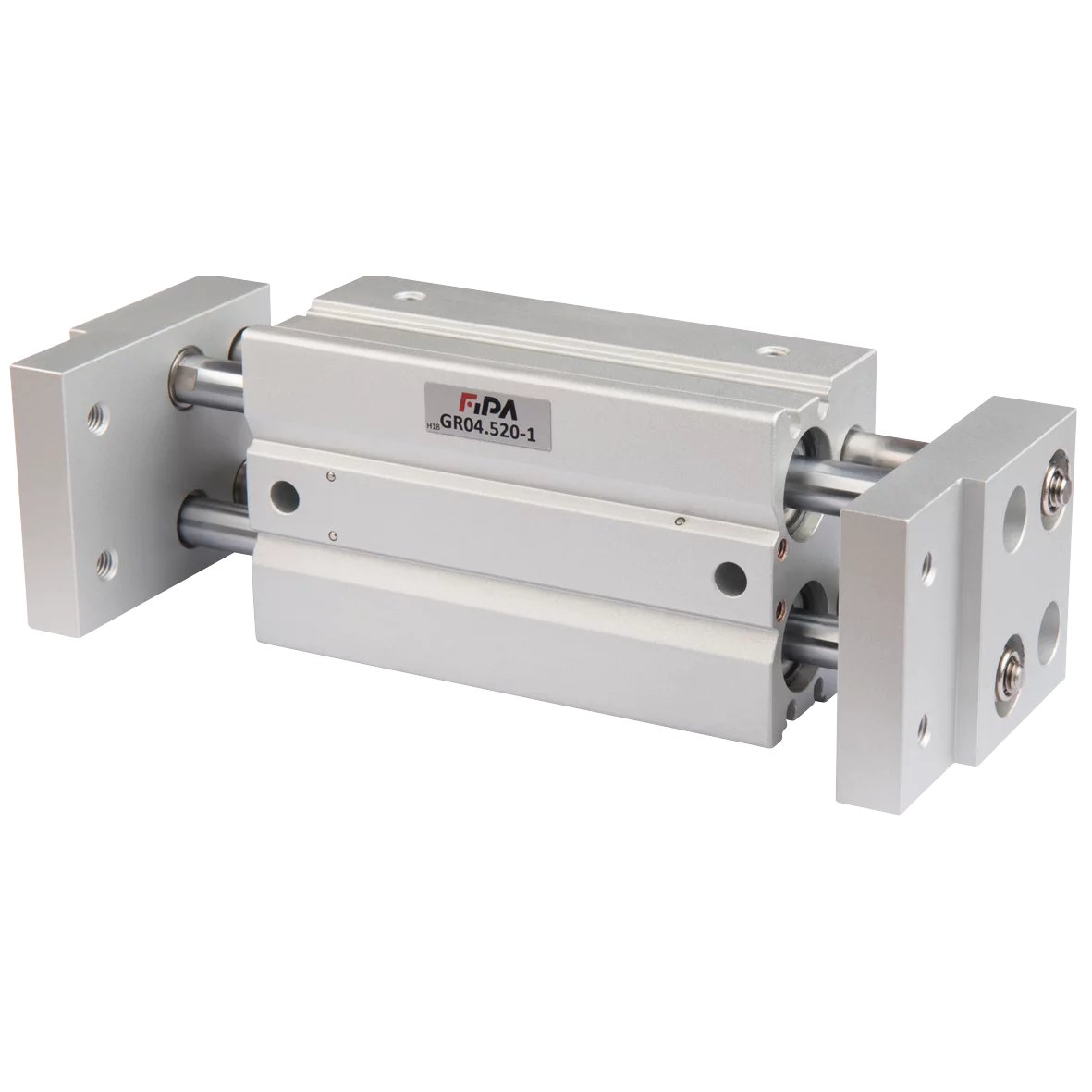

Parallel gripper, piston-Ø 20 mm, closing force at 6 bar 100 N, total stroke 80 mm
