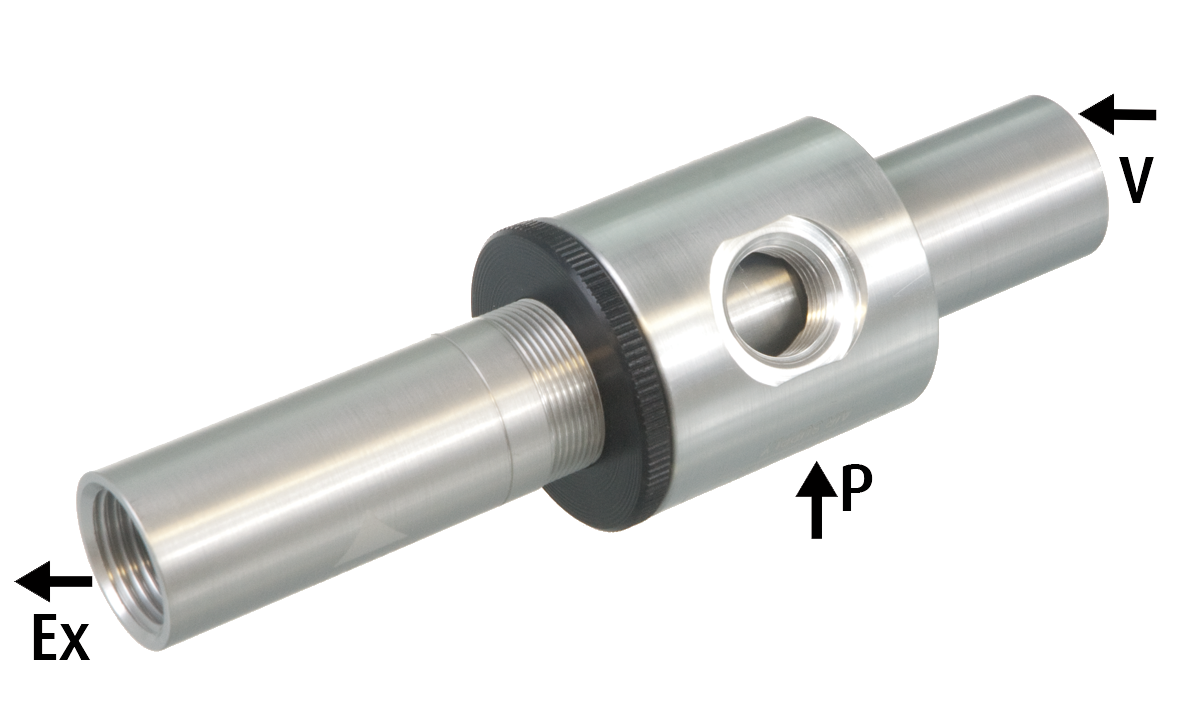

Feed ejectors – adjustable

High suction power for safe handling of air-permeable products or generally in the presence of high leakage
Gentle transportation of powdery substances or small-size products such as granular material, coffee, flour
Extraction of non-aggressive vapors and gases
Volume of suction air and required vacuum level can be adjusted by turning the suction pipe, allowing for an energy efficient increase in performance without increasing air consumption
Can even be used in rough conditions thanks to the robust, maintenance-free construction without moving parts
No build-up of heat because of no moving parts and therefore no risk of ignition during transport
High maximum vacuum level for overcoming larger height differences
Extremely flexible integration into gripper systems thanks to any mounting position

Notes

The transport length depends on the feed pressure, the transport volume and the transport goods
Rule of thumb:

- Tubing length from suction point to ejector ~ 2/3 of the total tubing length

- Tubing length from ejector to point of use ~ 1/3 of the total tubing length
Prior to installation a test at customer site is recommended
For longer distances, multiple ejectors can be serially connected
