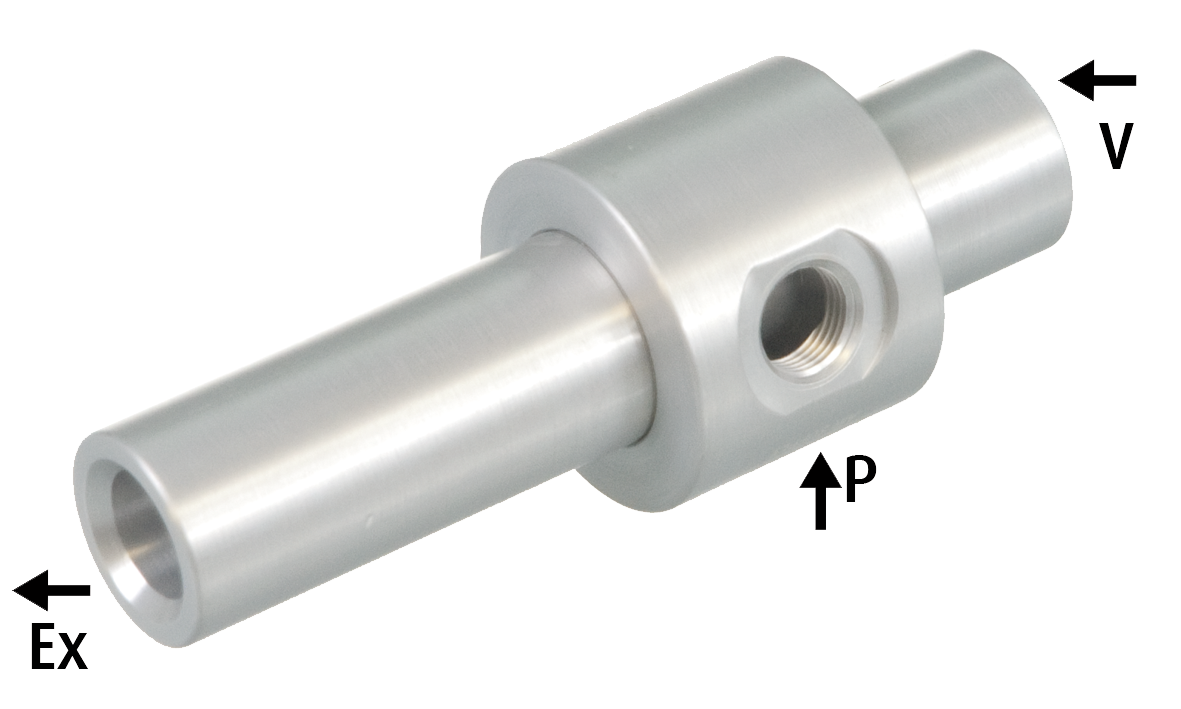

Feed ejectors – with a large passage

Very high suction power for high transportation throughput
Gentle transportation of powdery substances or small-size products such as granular material, pills, chippings
Extraction of non-aggressive vapors and gases
Can even be used in rough conditions thanks to the robust, maintenance-free construction
No build-up of heat because of no moving parts and therefore no risk of ignition during transport
Extremely flexible integration into gripper systems thanks to any mounting position
65.752: Connections for vacuum and outlet on both sides using G3/8 female thread (see drawing)

Notes

The transport length depends on the feed pressure, the transport volume and the transport goods
Rule of thumb:

- Tubing length from suction point to ejector ~ 2/3 of the total tubing length

- Tubing length from ejector to point of use ~ 1/3 of the total tubing length
Prior to installation a test at customer site is recommended
For longer distances, multiple ejectors can be serially connected

Here you will find all available documents, such as data sheets, certificates, and much more.

File	Filesize	Actions
datasheet-bds-fipa-65-742-foerderejektoren-grosser-durchgang-en-master.pdf	1009.11 KB	Download
