<ul>
<li>Elements to guide gripper components such as vacuum cups to the workpiece</li>
<li>Double-acting, separate compressed air connections for extraction and rectraction</li>
<li>Medium: filtered and oiled/unoiled air</li>
<li>Operating pressure: 0.5 - 9.9 bar (7.3 - 143.6 psi)</li>
</ul>
<ul>
<li>Operating temperature: -5 - 60 °C (23 - 140 °F)</li>
<li>Sensors for optional detection of piston position (extracted/retracted)</li>
<li>Through mounting option with mounting screw kits (please order separately according to cylinder size, consists of 4 screws/washers)</li>
<li>Further stroke versions available on request</li>
<li>PNP and NPN sensors: C-slot (90° angle): <a href="https://fipa.com/en-DE/variant/gr04-202p" target="_blank" rel="noopener">GR04.202P</a>, <a href="https://fipa.com/en-DE/variant/gr04-202n" target="_blank" rel="noopener">GR04.202N </a>/ C-slot (straight, short design): <a href="https://fipa.com/en-DE/variant/gr04-280p" target="_blank" rel="noopener">GR04.280P</a>, <a href="https://fipa.com/en-DE/variant/gr04-280n" target="_blank" rel="noopener">GR04.280N</a></li>
<li>Can be used as gripper tool when combined with pressure plates GR07.196 - GR07.199</li>
</ul>

<ul>
<li>Elemente zum präzisen Zustellen von Greiferkomponenten, wie z. B. Vakuumsaugern, an das Werkstück</li>
<li>Doppeltwirkend, je ein Druckluftanschluss zum Aus- und Einfahren</li>
<li>Medium: gefilterte und geölte/ungeölte Luft</li>
<li>Betriebsdruck: 0,5 - 9,9 bar (7,3 - 143,6 psi)</li>
</ul>
<ul>
<li>Betriebstemperatur: -5 - 60 °C (23 - 140 °F)</li>
<li>Sensornuten für optionale Abfrage der Kolbenstellung (ausgefahren/eingefahren)</li>
<li>Optionales Schraubenkit erhältlich zur Platz sparenden Montage, bestehend aus 4 Schrauben und 4 Scheiben (bitte passend zur Baugröße bestellen)</li>
<li>Weitere Hubversionen auf Anfrage</li>
<li>PNP- und NPN-Sensoren: C-Nut (Winkel 90°): <a href="https://fipa.com/de-DE/variant/gr04-202p" target="_blank" rel="noopener">GR04.202P</a>, <a href="https://fipa.com/de-DE/variant/gr04-202n" target="_blank" rel="noopener">GR04.202N </a>/ C-Nut (gerade, kurze Bauform): <a href="https://fipa.com/de-DE/variant/gr04-280p" target="_blank" rel="noopener">GR04.280P</a>, <a href="https://fipa.com/de-DE/variant/gr04-280n" target="_blank" rel="noopener">GR04.280N</a></li>
<li>In Kombination mit Druckplatten GR07.196 - GR07.199 auch als Greif- oder Haltewerkzeug geeignet</li>
</ul>

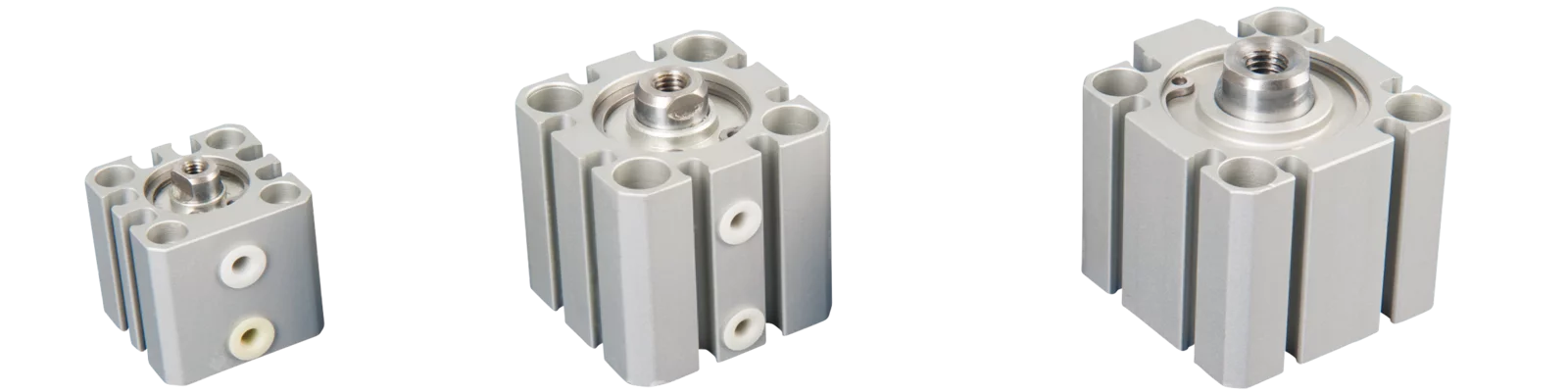

Short stroke cylinders – double-acting

Operating pressure 0.5-9.9 bar
Air supply M5-female
Incl. mounting material

Designation	Value
Ø D	9.0 mm
H	M6x10
SW	8.0
C	39.0 mm
G	M5x7
E	5.5 mm
□ B	36.0 mm
□ F	25.5 mm
Z	6.5 mm
T	7.0 mm
F1	20.0 mm
N	M5
C1	34.5 mm
Ø R	10.0 mm
Y	M5

Sales Partner

Short stroke cylinder, piston diameter 20 mm, double acting, stroke 5 mm
