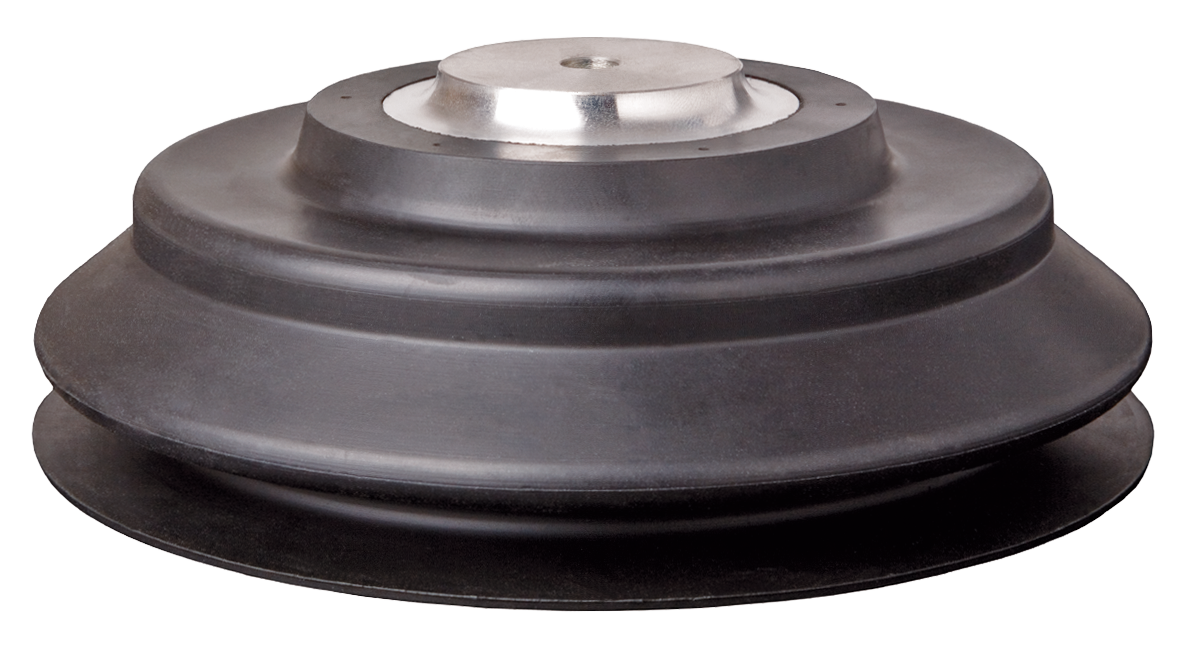

    Product Image

    Bellows vacuum cup; Ø 150 mm; 22.150.109

    Product notes

    Vacuum suction plate with 1.5 folds for gentle handling of heavy but sensitive products (e.g. glass plates). Divided support surfaces prevent deformation of the product and provide a firm grip. Additional safety sealing lip on the support block positions the product orthogonally to the ground.
    Connection via an interlocking, snap-in aluminum plate.

    Advantage

    • Very careful handling due to soft sealing lip and lightly compressing bellows
    • Cleats provide product support
    • Cost-effective replacement of worn seals
    Product Dimensional Drawing Image
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sbpl-sg-balgsaugplatte-en-master.pdf271.89 KB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
