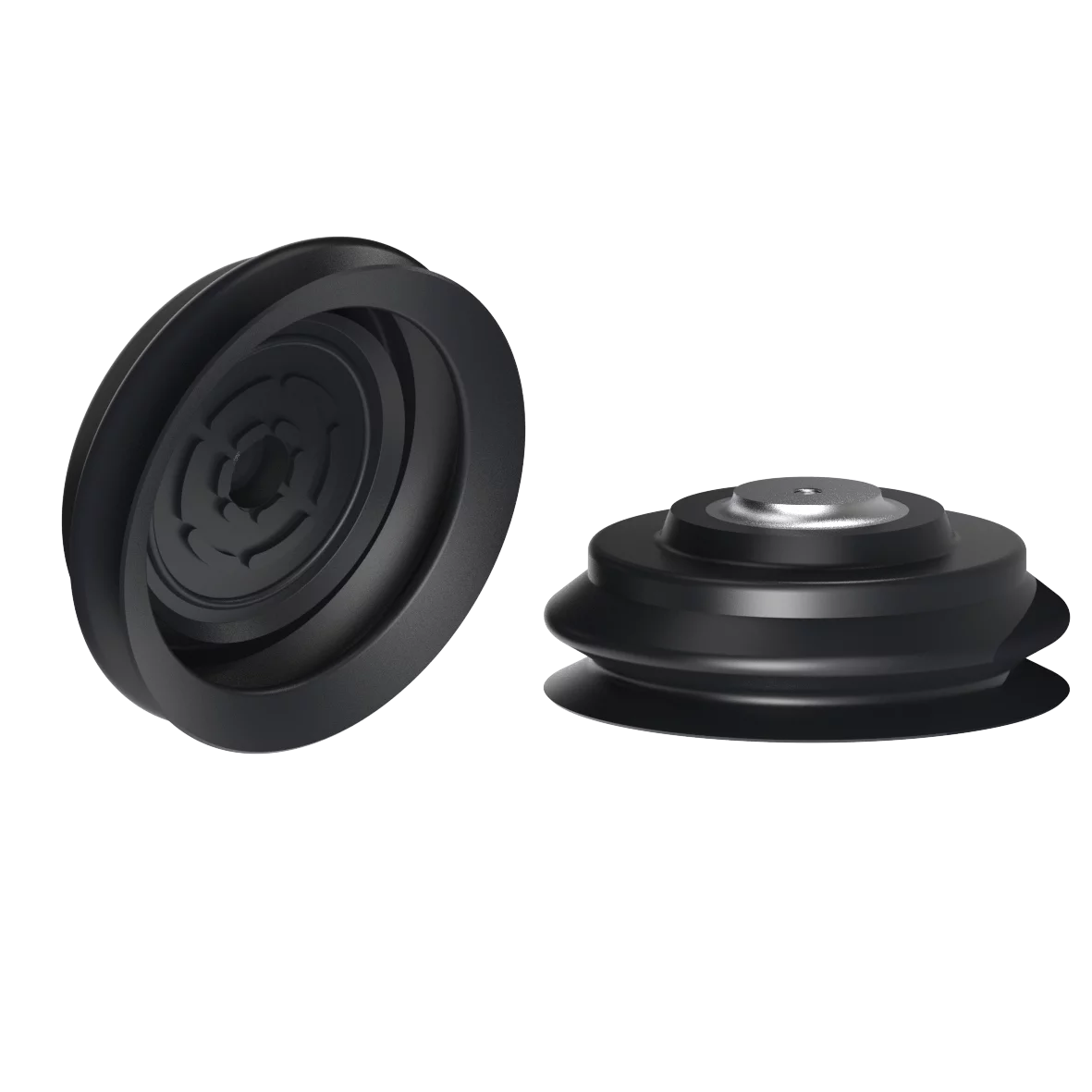

    Bellows vacuum cup diam. 150 mm (1.5 bellows) NBR black

    SKU:22.150.109.1

    Login to see the price
    Loading...

    Product notes

    Vacuum suction plate with 1.5 folds for gentle handling of heavy but sensitive products (e.g. glass plates). Divided support surfaces prevent deformation of the product and provide a firm grip. Additional safety sealing lip on the support block positions the product orthogonally to the ground.
    Connection via an interlocking, snap-in aluminum plate.

    Advantage

    • Very careful handling due to soft sealing lip and lightly compressing bellows
    • Cleats provide product support
    • Cost-effective replacement of worn seals

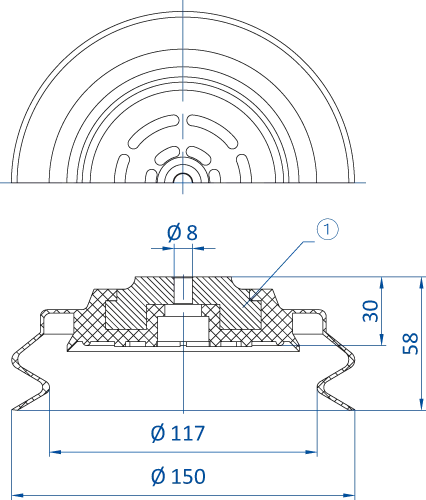

    Product Dimensional Drawing Image
    DesignationValue
    Ø D150.0 mm
    Ø d4117.0 mm
    H58.0 mm
    Ø dn8.0 mm
    h330.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sbpl-sg-balgsaugplatte-en-master.pdf271.89 KB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
