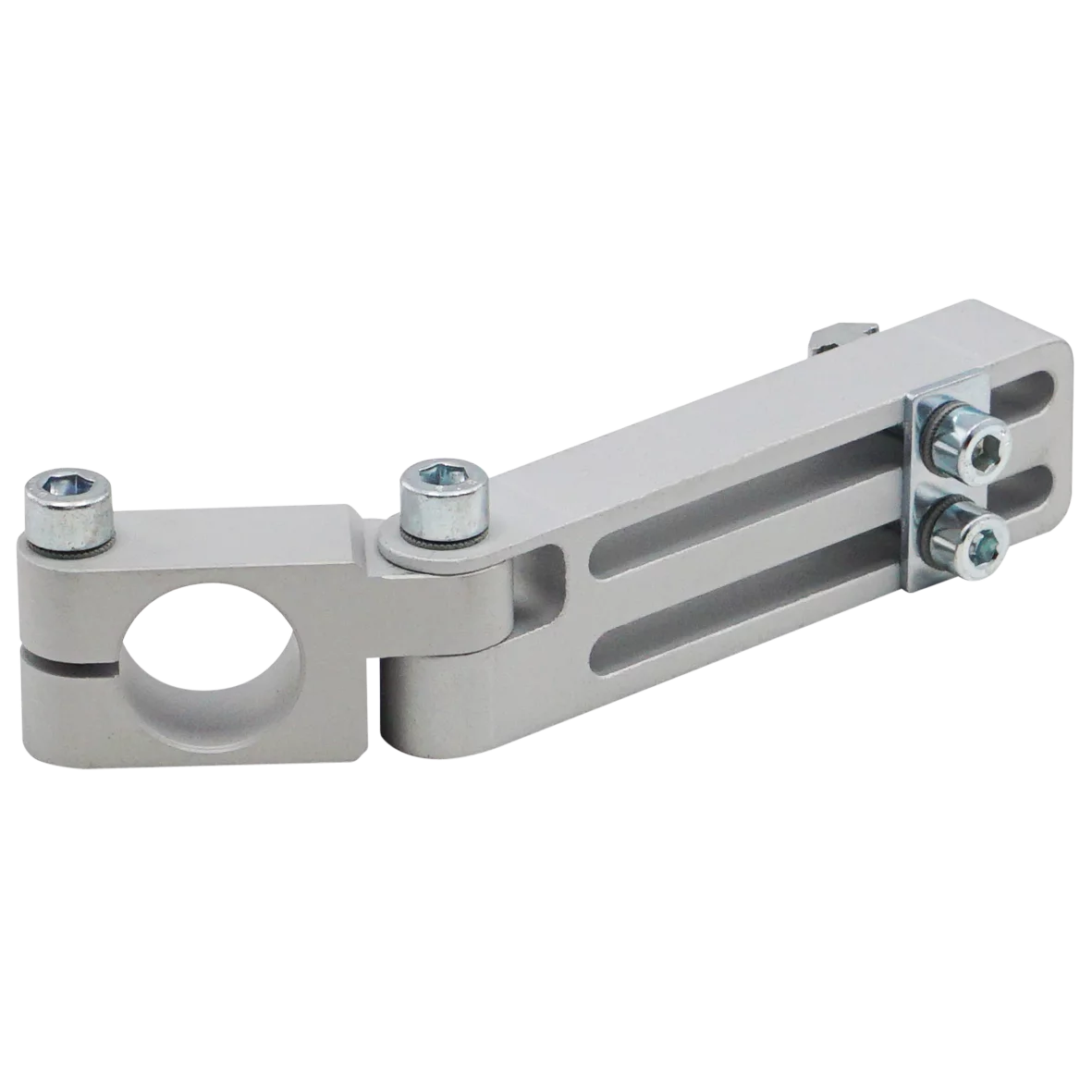

    S/MLine angular clamp, with jointed arm, clamping-Ø 20 mm

    SKU:GR02.028

    Login to see the price
    Loading...
    • Swivel head allows for angle variable installation of gripper components
    • Allows for adjustment parallel and perpendicular to the profile frame

    Application example

    Application example
    Product Dimensional Drawing Image
    DesignationValue
    H31.7 mm
    B25.0 mm
    C136.0 mm
    F65.0 mm
    Ø A20.0 mm
    D15.0 mm
    G44.0 mm
    K7.1 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr02-026-winkelklemmstuecke-schwenkbar-en-master.pdf838.29 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
