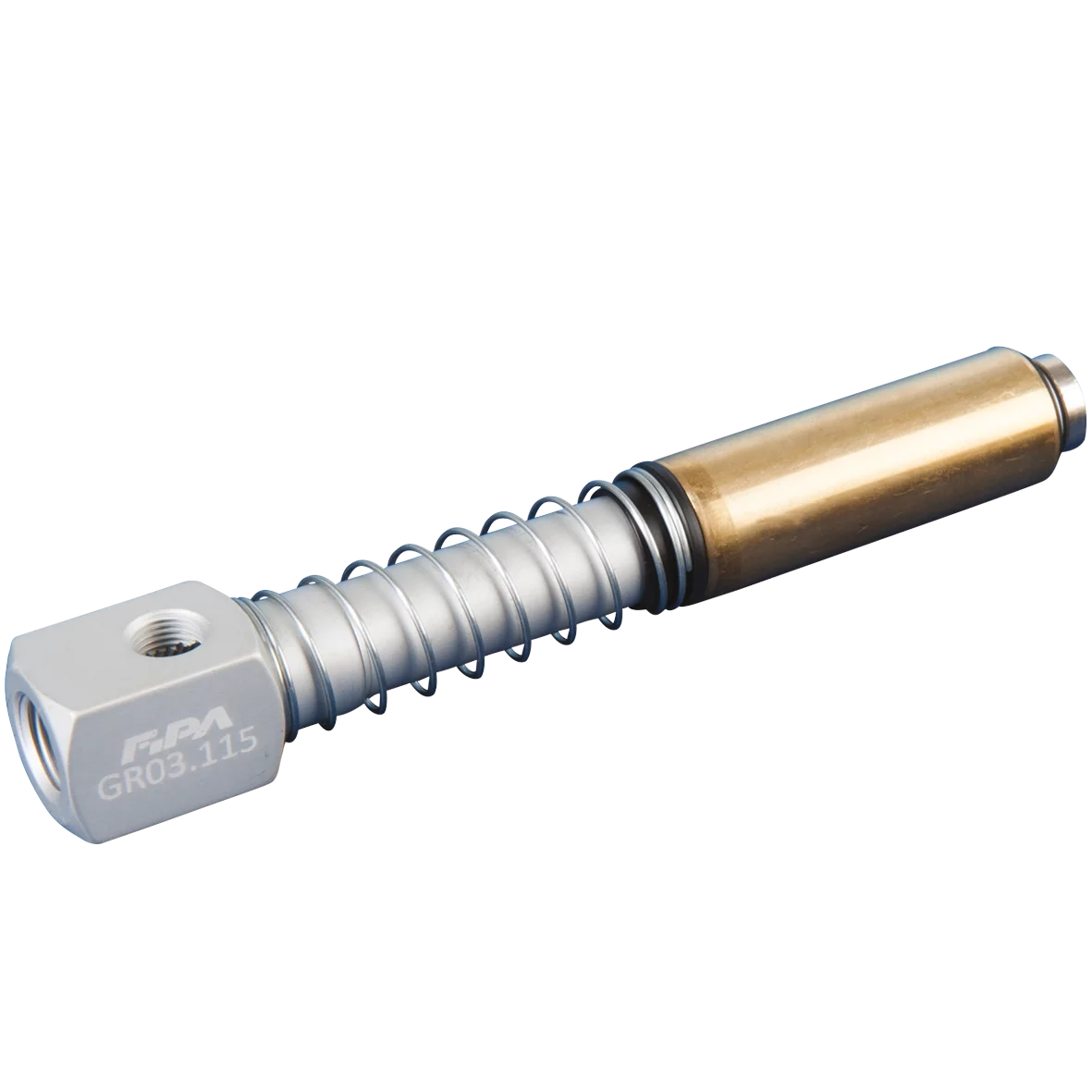

    Suction finger for suction cups - spring-loaded clamp-Ø20 mm, stroke 40 mm

    SKU:GR03.115

    Login to see the price
    Loading...
    • Spring compensates for variation in ejection stroke
    • Smooth motion due to lubrication-free polymer bearing
    • Only for round vacuum cups
    Product Dimensional Drawing Image
    DesignationValue
    HG1/4
    L55.0 mm
    C147.5 mm
    GG1/8
    F40.0 mm
    Ø A20.0 mm
    E70.0 mm
    □ B20.0 mm
    DG1/8
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr03-080a-saugarme-en-master.pdf1.06 MB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
